48V Floor Mount Smart CANbus 2.4kwh Lithium Battery for RV/Marine

Product Name

Dyness 2.4kWhr 48V Battery
Equivalent to 48V 50 Ahr
Rack or Vertical Floor Mount

Dyness 2.4kWhr 48V Battery
Equivalent to 48V 50 Ahr

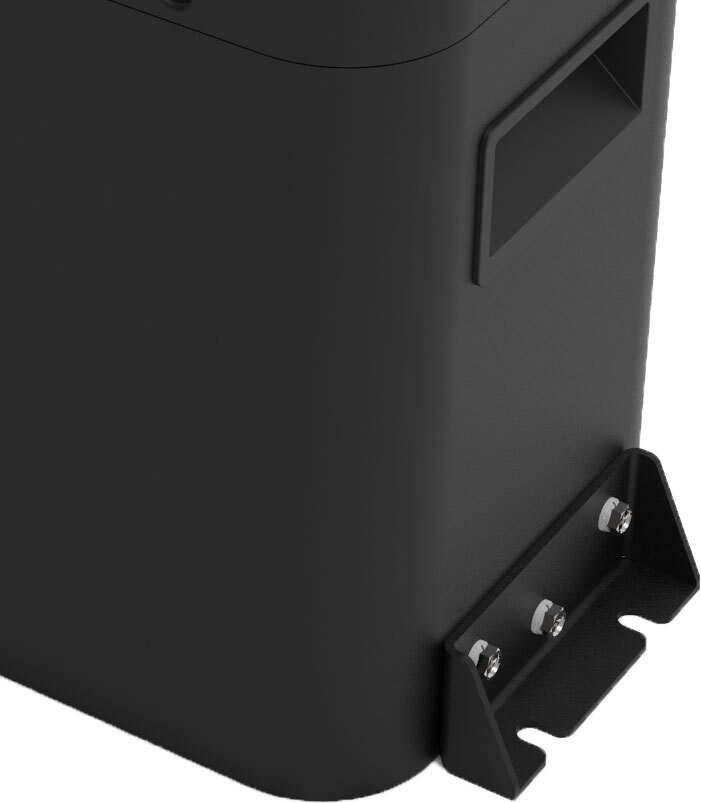

Floor Mount

Dyness 4.8kWhr 48V Battery
Equivalent to 48V 100 Ahr

 Product Image

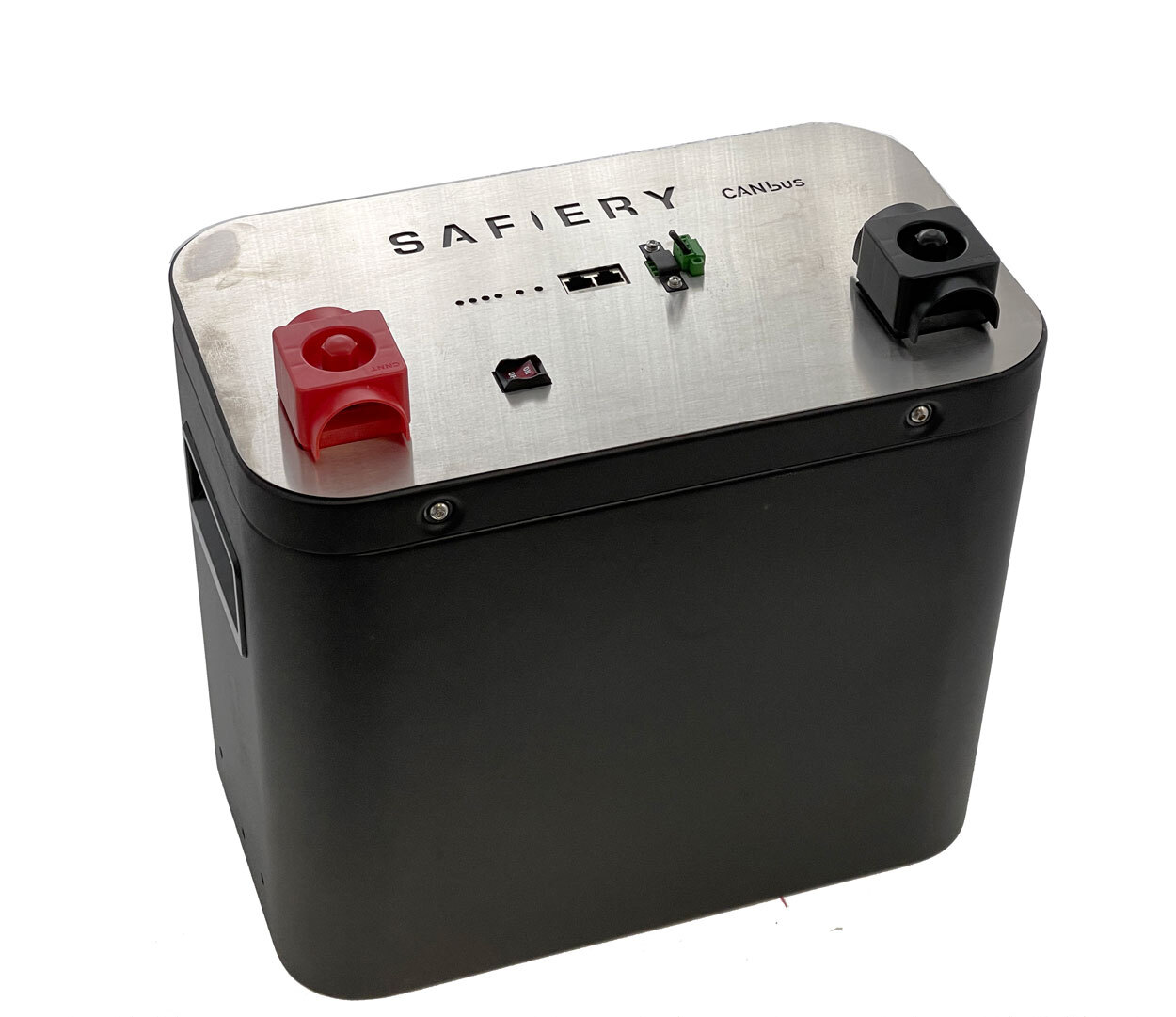

Photo shows pair back to back.
Future model will have enclosed red protection cap similar to floor mounted

Battery Type

Lithium-ion
Lithium Iron Phosphate

Lithium-ion
Lithium Iron Phosphate

Lithium-ion
Lithium Iron Phosphate

Nominal Storage

2.4kWhr

2.4kWhr

4.8kWhr

Usable Storage Capacity

2.16kWh (90% DOD)

2.16kWh (90% DOD)

4.3kWh (90% DOD)

Features

Can be parallelized up to 144 batteries

Leading battery becomes host and communicates with other batteries via canbus

Can be used in both off-grid and hybrid setups, compact size, modular expansion.

Battery is warranted to 55°C ambient

Can be parallelized up to 144 batteries

Leading battery becomes host and communicates with other batteries via canbus

Can be used in both off-grid and hybrid setups, compact size, modular expansion.

Battery is warranted to 55°C ambient

Can be parallelized up to 40 batteries

Leading battery becomes host and communicates with other batteries via canbus

Can be used in both off-grid and hybrid setups, compact size, modular expansion.

Battery is warranted to 55°C ambient

Weight

22kg

22kg

44kg

Power

1.75kW Continuous,
2.4kW Peak per battery

1.75kW Continuous,
2.4kW Peak per battery

3.75kW Continuous,
5kW Peak per battery

Dimensions (WHD)

 44cm x36cm x 9cm
Additional “ears” for support as 4cm in width if used

 38.6cm x 31.2cm x 21.6cm
Additional “ears” for support as 4cm in width if used

 50cm x59.7cm x 15.5cm
Additional wall/floor mounts increase width

Off-grid Capable?

Yes

Yes

Yes

IP rating

IP 54 (canbus to be sealed)

IP 54 (canbus to be sealed)

IP 54 (canbus to be sealed)

Operating temperature range

up to 50°C

up to 50°C

up to 50°C

Warranty

Fixed in Home: 6,000 Cycles at 80% DOD at 0.2C charge/Discharge rate
10 Years Warranty.

Mounted in Marine/RV:
No Cycle warranty
5 Years  (Limied to Product repair/ replacement)

Fixed in Home: 6,000 Cycles at 80% DOD at 0.2C charge/Discharge rate
10 Years Warranty.

Mounted in Marine/RV:
No Cycle warranty
5 Years  (Limied to Product repair/ replacement)

Fixed in Home: 6,000 Cycles at 80% DOD at 0.2C charge/Discharge rate
10 Years Warranty.

Mounted in Marine/RV:
No Cycle warranty
5 Years  (Limied to Product repair/ replacement)

Warranty Document Supplied?

Yes

Yes

Yes

Spec sheet supplied?

Yes

Yes

Yes

BMS Compatible with Australian Approved Victron inverter/ Charger.

Yes

Yes

Yes
